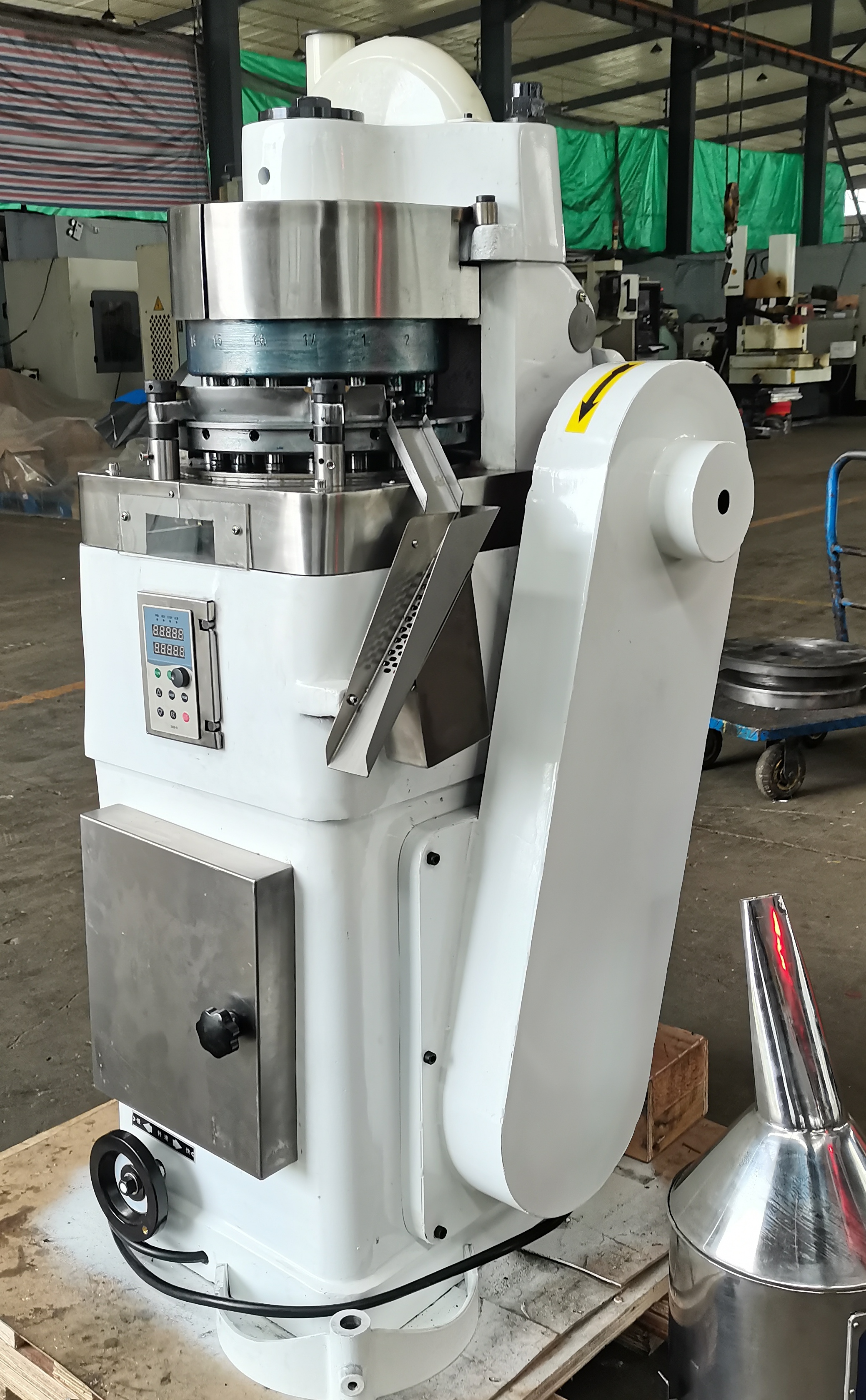

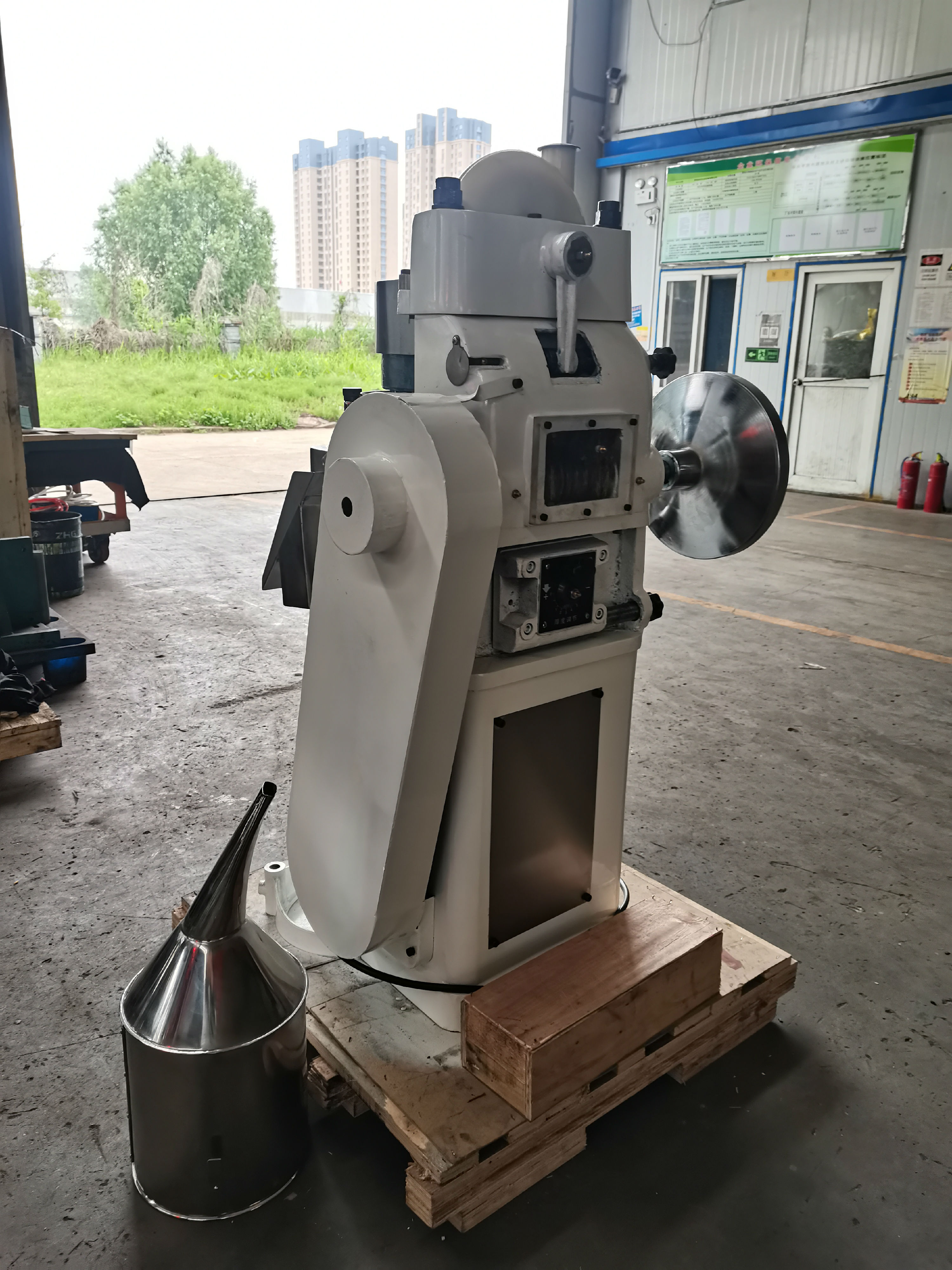

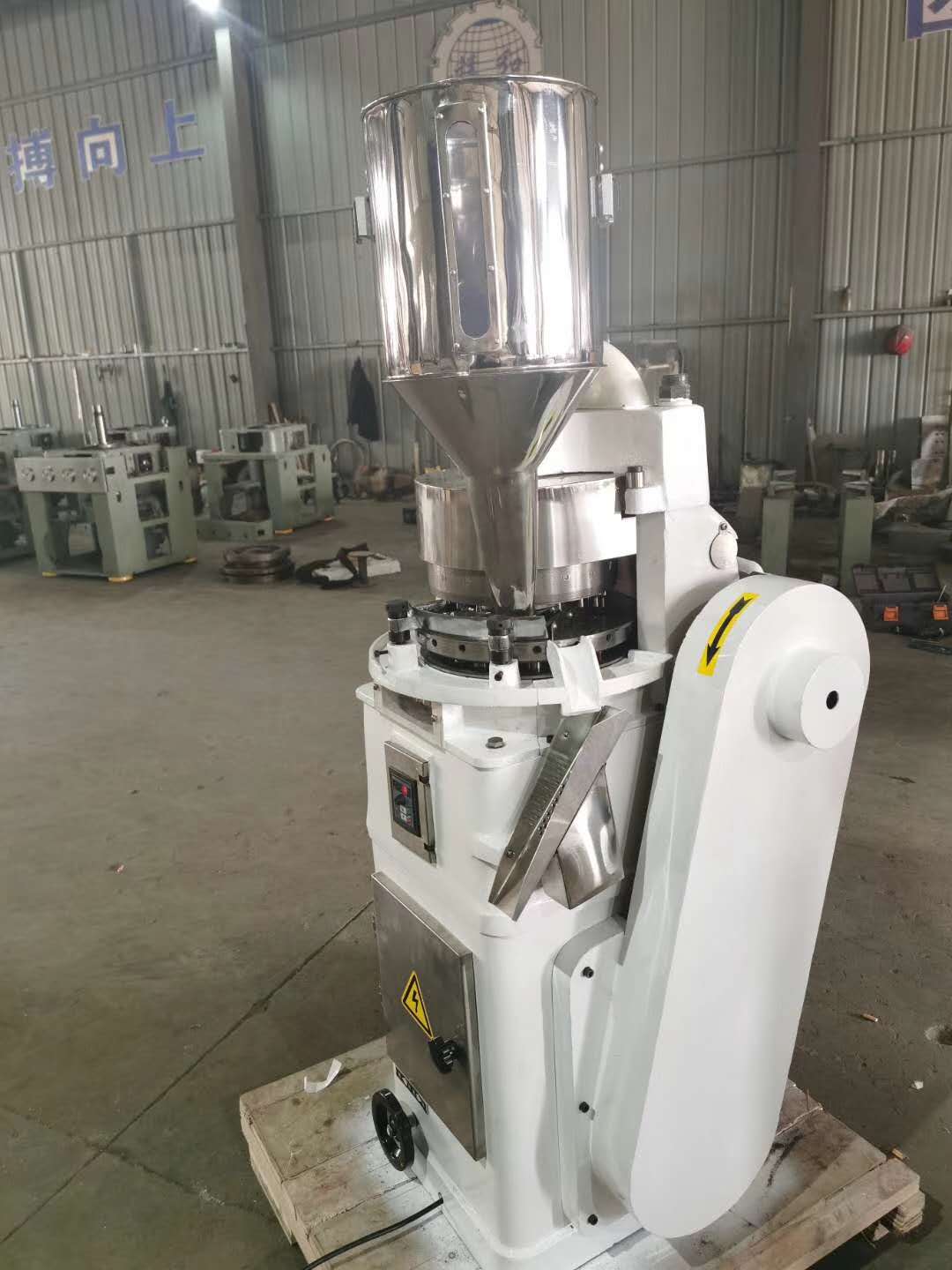

ZP19 Rotary Tablet Press
一、Uses overview
1、The machine is a continuous pressure and automatic feeding of Tablet pressing machinery, high output, good reliability.Mainly used in the pharmaceutical industry, will be useful in the food, chemical and other industrial sectors, is to deal with all kinds of granular raw materials and processing the basic equipment or system.
2、Suitable for mass production of repression of various circles, such as pills or tablets, sugar tablets.
3、Does not apply to half of powder and granular solids, moisture very fine powder pressing.
二、Structure characteristic
4、The upper part of the machine for the structure of the tablet.19 die are evenly spaced on the turntable, die by the upper punch, die, punch consisting of three other pieces, upper and lower punch tail nested in the fixed curve rail, when when the turntable spins, punch with speed lifting movements, such as guided curve rail, when the upper and lower punch pressure wheel cylinder is complete when the tablet.
5、The Tablet's work is divided into: ①, ② pressure filling, ③ three program ongoing.Filling and pressure no adjustment and control bodies, respectively, with table card descriptions, easy operation.
6、This machine uses the flow grid feeding mechanism, can make the material evenly filled with mould hole, reducing the weight difference.
7、The motor mounted within the frame, drag worm with v-belt drive turntable, and devices on a motor shaft stepless variable pulley, move through the motor, adjustable speed, reduce the weight difference.
8、The side of the frame fitted with priming powder box, including blower, filter powder powder room, storage room, when the machine is running high speed, fly powder powder and die in fall, removed through priming powder box without bonding gagged, maintain a smooth normal.
三、Technical performance
9、The main technical data and productivity
Go die on stage115 Voltage (v)380
ModelY112M-6 Frequency (Hz)50
Die diameter (mm)26
Die thickness (mm)22
Max pressure of Tablet pressure (kn) 60
Max pressure of Tablet diameter (mm) 20
Max depth of filling (mm) 15
Film thickness range (mm) 1-6
Upper and lower punch diameter (mm) 22
Upper and lower punch length to diameter (mm) 115
10、Equipped with dynamic data and models
Motor power (kW) 2.2
Speed (r.p.m）30
